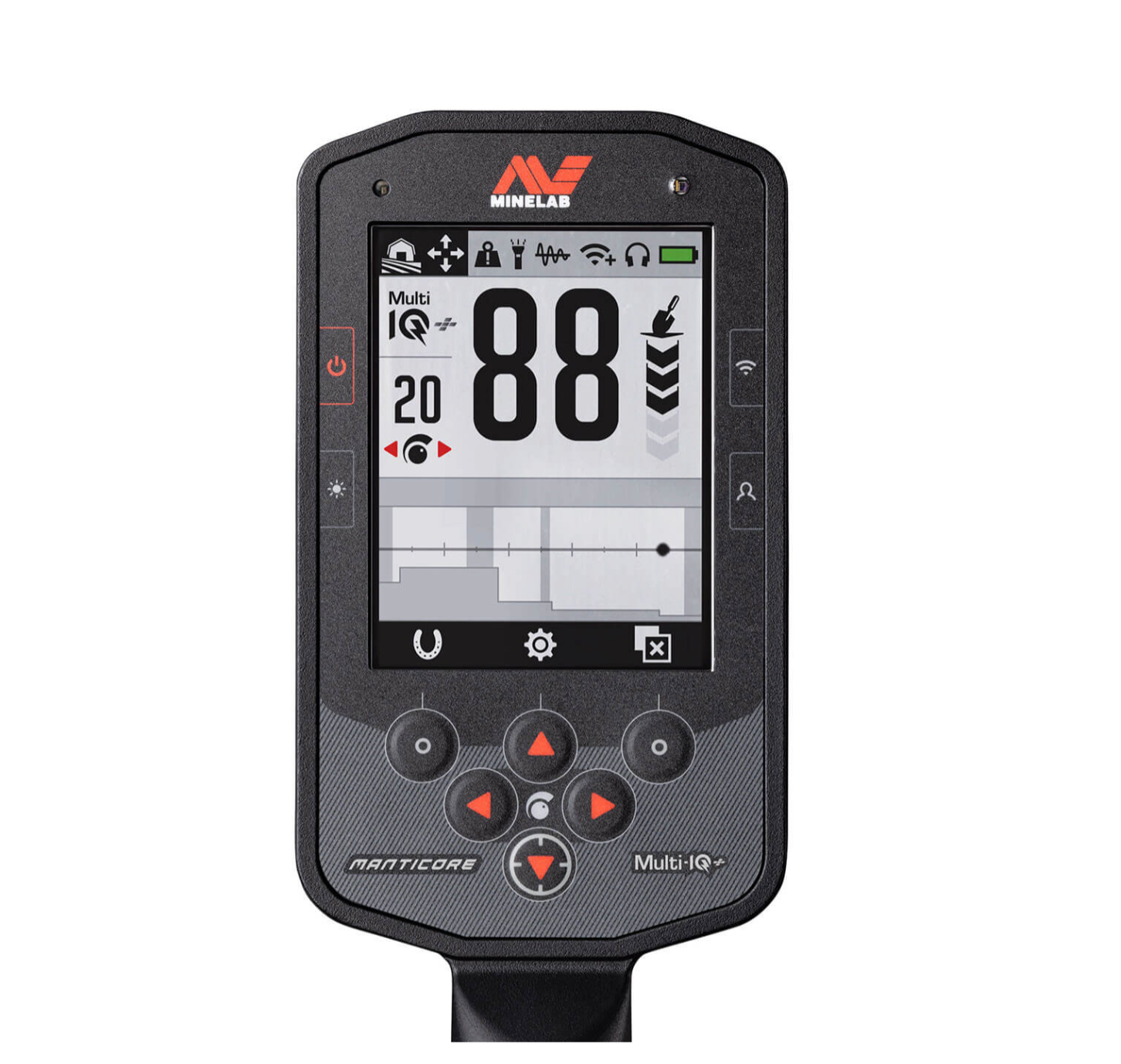

Manticore

MANTICORE with Multi-IQ+ is the most powerful, fastest, and precise metal detector in Minelab’s history. The heart of MANTICORE is its super-charged Simultaneous Multi-Frequency (MULTI-IQ+) engine. This feat of innovation generates an incredible 50% power increase over the best-selling detector series of all time: EQUINOX. When combined with advanced 2D Target Identification (ID) and rich audio options, the detectorist has every bit of vital information arriving at their eyes and ears. MANTICORE is an unrivalled detecting experience that pushes the boundaries of detecting to deliver more power, more depth, and more finds.

Manticore Includes:

• M11 Coil with Skidplate, 11" Round Double-D— Waterproof to 5 m (16 ft)
  Low Latency Wireless, Headphones with Carry Case
  Wireless Headphone Accessories — Audio Cable and Charging Cable
  Magnetic USB Charge Cable
  Getting Started Guide
  5 x Screen Protectors

Exclusive Alert!

Before purchasing your brand-new metal detector, reach out to us for unbeatable deals, (we can't show) limited-time promotions, and personalized accessory packages! Whether you need a pinpointer, a sturdy digging tool, or a convenient carrying case, we got you covered with custom packages tailored to your needs.

The Minelab Manticore metal detector stands out with its cutting-edge technology, particularly the Multi-IQ+ engine. This high-power simultaneous multi-frequency technology enables the Manticore to detect a wide range of targets by operating across the full spectrum of frequencies simultaneously. This results in maximum depth and sensitivity, allowing users to locate both large and small targets effectively, regardless of the terrain.

Another notable feature is the advanced 2D ID map system with Target Trace, which provides a detailed visualization of target information. This system helps users distinguish between different types of targets more accurately, reducing the chances of digging up unwanted items. Additionally, the Manticore's customizable audio settings allow users to adjust the tone, pitch, and volume, tailoring the detector's feedback to their preferences for a more intuitive and efficient detection experience​.

The Manticore is also designed with robust waterproof capabilities, making it suitable for underwater exploration up to 5 meters (16 feet) with an IP68 rating. This feature, combined with its enhanced EMI immunity, ensures reliable performance even in challenging environmental conditions. The included accessories in the Manticore package are the Minelab ML-105 wireless low latency headphones, a USB charging cable, five screen protectors, a 3.5 mm headphone audio cable, and a headphone case

Manticore Tech Specs



• Detect Modes: (Customizable) All-Terrain (5), Beach (4), Goldfield (1)
• Operating Frequencies: Multi-IQ+, 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz
• Noise: Cancel Auto, Continuous Auto, Manual (-9 to +9)
• Ground Balance: Auto, Manual, Tracking
• Sensitivity: 1 to 35
• Target Identification Conductive: 0-99 with ferrous indication
• 2D ID Map Two-Dimensional ID Map System with Target Trace
• Target Tones: 1, 2, 5 - Tone | 1, 2, 5 - Region All Tones
• Target Volume: 0 to 25
• Target Pitch: 1 to 50
• Ferrous Volume: 0 to 25
• Ferrous Pitch: 1 to 50
• Audio Themes: Normal, Enhanced, Depth, Prospecting
• Volume Profiles: Simple, Medium, Rich
• Threshold Level: 0 to 25
• Threshold Pitch: 1 to 50
• Recovery Speed: 0 to 8
• Ferrous Limits Upper: 0 to 14 | Lower: 0 to 9
• Ferrous Limits: Custom 1 to 4
• Shortcuts Soft Keys: 2 (Action Bar), 1 (User Button)
• Depth Indicator: 5 levels
• Shaft System: 3-piece highly collapsible carbon-fiber
• Extended Length: 1440 mm / 56.7 inch
• Collapsed Length: 630 mm / 24.8 inch
• Weight: 3 kg / 2.9 lb
• Standard Coil: (M11) 11-inch round Double-D coil with skidplate (waterproof to 5 m / 16 ft)
• Audio: Output Speaker | 3.5 mm (1/8") headphones | Wireless low latency headphones
• Headphones: (Included) Minelab ML-105 wireless low latency headphones (non waterproof)
• Display Colour: LCD
• Display Backlight: Manual (1 to 10), Auto Adjust
• Keypad Backlight: On, Off
• Flashlight: Low, Medium, High, Off
• Handgrip Vibration: On, Off
• Battery: Internal rechargeable Lithium-ion battery
• Battery Run: Time 10 hours
• Battery Charge: Time 7 hours
• Waterproof: Waterproof to 5 m / 16 ft, IP68
• Key Technologies: Multi-IQ+ (High Power Simultaneous Multi-Frequency)
• Included Accessories: USB Charging Cable, 5x Screen Protectors, 3.5 mm Headphone Audio Cable, Headphone Case
• Software Upgradable: Yes, via USB connection (Windows or Mac OS compatible)

The Minelab Manticore is a high-performance metal detector that has garnered positive reviews for its advanced features and robust build quality. Here are some key highlights based on recent reviews:

- Detection Capability: The Manticore excels in detecting deep targets, surpassing older models like the CTX 3030 and Equinox 800. Users have reported successfully finding targets at depths of up to 13 inches, including coins and small artifacts​​.

- Build Quality and Ergonomics: The Manticore features a sturdy, improved design with a three-piece collapsible carbon-fiber shaft and an upgraded arm cuff. It addresses common issues from previous models, such as the wobbly shaft and fragile coil ears. The detector weighs 2.9 lbs (1.3 kg), making it relatively lightweight and comfortable to use for extended periods​​.

- Advanced Features: It includes a 2D target identification map, customizable audio settings, and enhanced discrimination capabilities. The Multi-IQ+ technology allows the detector to operate at multiple frequencies simultaneously, improving target detection and identification accuracy. The Manticore also boasts improved EMI immunity, making it effective even in environments with significant electromagnetic interference​​.

- Waterproofing: With an IP68 rating, the Manticore is waterproof up to 16 feet (5 meters), suitable for underwater exploration in rivers, lakes, and coastal areas​.
Audio and Headphones: The ML-105 wireless headphones included with the Manticore offer excellent audio quality with no noticeable delay. However, they are not waterproof, so caution is advised in wet conditions​

- User Experience: The Manticore features a large, intuitive color LCD screen and user-friendly interface. It offers various search modes tailored to different environments, such as all-terrain, beach, and goldfield modes​..

In summary, the Minelab Manticore is a top-tier metal detector praised for its depth capability, build quality, advanced features, and ease of use. It is a strong contender in the market, suitable for both novice and experienced detectorists.
