Minelab VANQUISH 560

$399.00

Contact us for the latest factory promotions that others may not be offering. We also offer custom accessory packages with your new metal detector. Contact us and ask!!??

AVAILABLE: OUT OF STOCK

SKU:

CATEGORY:

Description
CUSTOMER REVIEWS

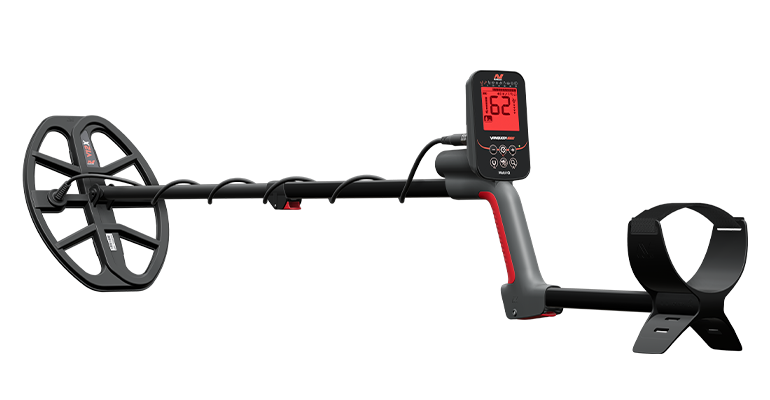

Minelab VANQUISH 560 – Advanced All-Terrain Waterproof Multi-Frequency Metal Detector

Always ask for deals/promotions not advertised on our website. Or, create your own metal detector bundle and get our deal.

Overview

The Minelab VANQUISH 560 sets a higher standard in the popular VANQUISH series, offering increased power, precision and control for treasure-hunters who demand more. Powered by Minelab’s proven Multi-IQ® simultaneous multi-frequency technology, the VANQUISH 560 gives you broad ground coverage, enhanced target recognition, and reliable performance across varied terrain. Minelab+2Minelab+2
This model features full waterproof construction (IP68 rated up to 5 m / 16 ft) for use in wet terrain and shoreline conditions. Minelab+1
With a large V12X 12″ × 9″ Double-D coil for deeper and wider ground coverage, a red LED back-lit display for low-light conditions, Bluetooth® LE Audio capability (LC3 codec) for wireless headphone use, hand-grip vibration alerts, and a built-in flashlight — the VANQUISH 560 is built to handle serious detecting in parks, fields, beaches and wet zones. Minelab+1

Designed for hobbyists and semi-serious detectorists who want to upgrade their kit without moving into ultra-high-end pricing, the VANQUISH 560 offers advanced features in an intuitive, user-friendly platform.

Key Benefits & Features

Multi-IQ Simultaneous Multi-Frequency: No need to switch frequencies when terrain changes. The Multi-IQ system works across all soils, increasing your chance to detect elusive targets. Minelab+1
Fully Waterproof (up to 5 m / 16 ft): With IP68 rating, you can detect in wet terrain, creeks, shorelines or rainy conditions without compromise. Minelab+1
Large V12X Coil for Coverage & Depth: The included V12X 12″×9″ Double-D coil gives excellent ground coverage and sensitivity to deeper targets. Minelab+1
Red LED Back-lit Display & Built-in Flashlight: Detect easily in low-light conditions (dawn/dusk), beaches or shaded areas thanks to the clear display and built-in flashlight. Minelab+1
Wireless Audio & Hand-grip Vibration Feedback: Use Bluetooth LE Audio (LC3 codec) with compatible wireless headphones, or wired headphones — plus you’ll receive vibration alerts on the grip for silent or noisy environments. Minelab
Fine Control over Discrimination and Iron Bias: With 30 discrimination segments and 4 iron bias levels you can tune how the detector treats ferrous junk vs. valuable non-ferrous targets. Minelab+1
Lightweight and Compact: At just around 1.26 kg (2.6 lb) and collapsing to ~79 cm (31″) for transport, the unit is easy to carry and deploy. Minelab
Reliable Warranty: Backed by a 3-year warranty on the control box and coil, showing Minelab’s confidence in this detector. Minelab+1

Why Choose the VANQUISH 560?

If you’re seeking a metal detector that bridges the gap between basic models and premium pro machines, the VANQUISH 560 is a smart choice. Rather than limiting features, it gives advanced users the tools they need — enhanced discrimination, wireless audio, large coil, waterproofing — while still maintaining ease of use.
The waterproof design means you are not limited to dry parks — you can venture into surf zones, riverbanks and wet terrain, and the large coil means you cover more ground in less time. The inclusion of wireless audio and tactile feedback shows that Minelab has designed this for serious detecting in real-world conditions.
Whether you're upgrading from your first detector or buying your first serious one, the VANQUISH 560 offers strong value: serious features, great build, versatile for many terrains — making it an investment for seasons of hunting ahead.

Ideal Applications

Hunting coins, jewellery and relics in urban parks, picnic grounds or high-traffic public areas.
Beach detecting, including wet sand and shoreline zones thanks to the IP68 waterproof build.
Exploring riverbanks, creek beds and shoreline areas where splash, sand and moisture are present.
Hobbyists wanting a detector for travel, camping and holiday hunts — easy to pack, strong performance across terrain types.
Detecting in mixed terrain environments (grass, light brush, damp soil, near water) where versatility and ease of use matter.
Intermediate to advanced users who want to upgrade from a basic machine into something with professional-grade core tech without going into ultra-high-end cost tiers.

Technology & Practical Use Cases

Multi-IQ® Technology

The heart of the VANQUISH 560 is Minelab’s Multi-IQ multi-frequency system. Instead of switching between discrete single frequencies when the ground or target type changes, Multi-IQ gives you simultaneous multiple frequencies — improving ground coverage, reducing interference and increasing chances of detecting elusive targets in variable soils. Minelab+1
In practice this means:

On a beach with wet salt sand along one edge and dry sand along another, the detector seamlessly adapts.
In a park with mixed ground (grass, pathways, old disturbed soil) the unit remains stable and performant.
In wet terrain or after rainfall where ground noise might affect lesser detectors — Multi-IQ helps maintain stability and target clarity.

Waterproof & All-Terrain Build

With IP68 waterproof rating up to 5 m (16 ft), the VANQUISH 560 is built for real-world detection in wet, muddy or shoreline environments. Minelab+1
Use-case examples:

Detecting along a lake shore after a storm — you won’t have to stop because the ground is damp or shallow shoreline pooling has occurred.
Exploring a creek bed for lost jewellery or coins — you can submerge the coil and control box without concern (within spec).
Beach work where splash, salt and moisture are present — the sealed design gives you peace of mind.

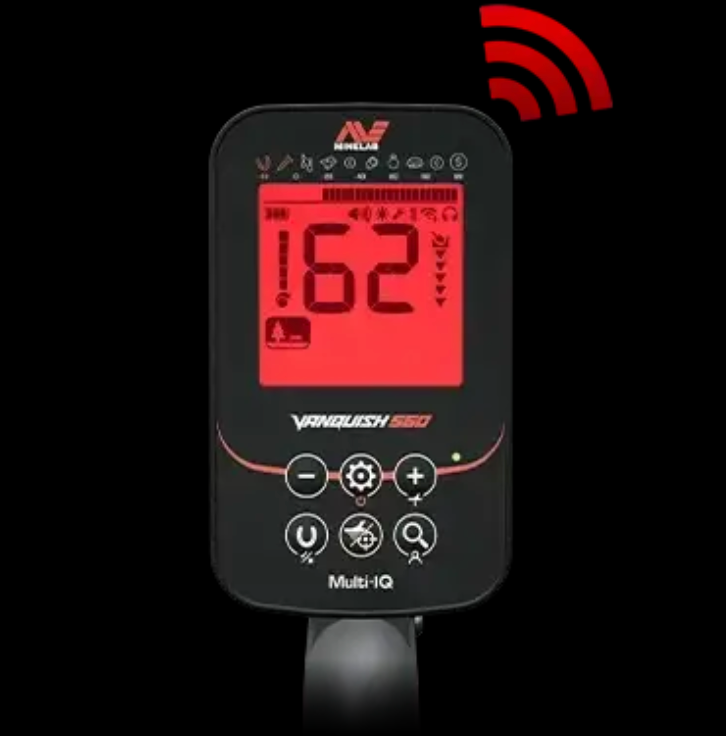

Red LED Display, Wireless Audio & Vibration Feedback

The red LED back-lit display ensures you can detect in low-light conditions such as dawn, dusk or shaded beaches. Minelab+1
Wireless audio with Bluetooth LE (LC3 codec) allows use of compatible wireless headphones with low latency — great for freedom of movement. Hand-grip vibration alerts mean you won’t miss signals even when you can’t hear well. Together these features offer enhanced detecting flexibility. Minelab+1

Discrimination & Target ID Control

With 30 discrimination segments, target IDs from –19 to 99 (ferrous –19 to 0, non-ferrous 1 to 99), depth indicator of 5 levels and 4 levels of Iron Bias, the VANQUISH 560 gives you fine-control over what you dig and what you leave behind. Minelab+1
For example, if you’re detecting in a trash-filled park you might increase discrimination, raise iron bias to reduce unwanted junk targets. On a clean beach you might reduce discrimination, open up sensitivity and maximise precious finds.

Lightweight & Field-Friendly

At ~1.26 kg (2.6 lbs) and collapsing to ~79 cm (31″) for transport, the machine is travel-friendly, long session-friendly and easier on your back. Minelab+1
When detecting for hours you’ll appreciate a lighter machine and compact transport size.

Specifications Sheet

Search Modes: Beach | Park | Field | User Profile Minelab+1
Operation Frequency: Multi-IQ® Minelab
Sensitivity Levels: 10 Levels Minelab
Noise Cancel: Auto Minelab

Audio Features:

Wireless Audio: Bluetooth LE Audio (LC3 Codec) Minelab
Volume Control: 10 Levels Minelab
Ferrous Volume: 10 Levels Minelab
Target Tones: 5 Tones Minelab
Audio Output Options: Built-in Loudspeaker, Wired 3.5 mm (1/8″) Headphones, Bluetooth LE Audio Minelab

Discrimination / Target Identification:

Discrimination Segments: 30 Segments Minelab
Target IDs: Ferrous: –19 to 0, Non-Ferrous: 1 to 99 Minelab
Depth Indicator: 5 Levels Minelab
Iron Bias: 4 Levels Minelab

Physical & Environmental:

Length (Extended): 142 cm (56 in) Minelab
Weight: ~1.26 kg (2.6 lb) Minelab
Collapsed Length: ~79 cm (31″) DetectorProspector.com
Operating Temperature Range: –10 °C to +40 °C (+14°F to +104°F) Minelab
Storage Temperature Range: –20 °C to +70 °C (–4°F to +158°F) Minelab
Waterproof Rating: IP68 — submersible up to 5 m (16 ft) Minelab+1

Display / Additional Features:

Display: Monochrome LCD with red LED back-light Minelab+1
Backlight: Yes Minelab
Keypad Backlight: Yes Minelab
Flashlight: Yes Minelab
Vibration Grip Feedback: Yes Minelab
Warranty: 3-Year (Control Box & Coil) Minelab

What’s in the Box:

Standard Coil: V12X 12″ × 9″ Double-D Elliptical Minelab+1
Supplied Batteries: Internal Lithium-Ion Rechargeable Battery Pack Minelab
Supplied Accessories: V12X 12″×9″ Double-D Elliptical Coil, (in Pro-Pack version also V8X 8″×5″ coil), ML60 Bluetooth LE Earbuds (or compatible wireless) Minelab+1

Tips for Maximum Performance

Choose the right search mode – Use “Park” for open grassy areas or city parks, “Field” for larger open terrain, “Beach” for shoreline and wet sand, and “User Profile” to save your preferred settings for repeat hunts.
Adjust sensitivity carefully – Start at mid-level sensitivity. If you’re in interference or a site with high trash/iron, reduce sensitivity to keep the unit stable. On a clean site, raise sensitivity to detect faint targets.
Use discrimination and iron bias – Use the 30-segment discrimination and 4-level iron bias to filter out unwanted metal and emphasise targets of interest. Trash-filled park? Increase iron bias and raise discrimination. Clean beach? Lower discrimination and open sensitivity.
Leverage Pinpoint mode – When you get a signal, switch into Pinpoint (if applicable version) to locate the exact spot before digging. Less digging means less mess, faster finds.
Protect the waterproof integrity – After water use (especially saltwater), rinse with fresh water, ensure connections are clean and dry before charging. Use the built-in flashlight on the display when needed.
Carry and pack smarter – Collapse the shaft when transporting (79 cm when collapsed) and use the lightweight 1.26 kg build to detect longer sessions with less fatigue.
Use wireless audio + vibration when beneficial – If detecting in noisy or windy environments, wireless headphones + vibration grip can help you hear/feel signals you might otherwise miss.
Understand your ground – In highly mineralised or iron-rich soil, you may need to reduce sensitivity, increase discrimination or switch to a user profile customised for that site.
Use slow, consistent sweeps – Especially with the large V12X coil: keep the coil near ground, swing in overlapping passes to maximise coverage, and maintain a steady pace to allow the detector time to respond.
Check firmware/support updates – While Minelab units don’t always require frequent updates, check the support section for latest firmware or feature enhancements, especially if you pair wireless headphones or accessories.

Why It’s an Investment

The VANQUISH 560 is not just another entry-level detector — it’s a robust, feature-rich machine built to last and give you serious detecting capability. Multi-IQ means you won’t quickly outgrow it. Waterproofing, wireless audio, large coil, fine discrimination control — these are features you typically see in higher price tiers.
By choosing this model, you're investing in a platform that will serve you through many hunts — whether parks, beaches, fields or wet terrain. It gives you flexibility, upgrade-scope, and strong performance without stepping into ultra-premium cost territory.
Because it covers a wide array of detecting environments, you won’t need multiple machines. That means one investment and longer productive use. A 3-year warranty also adds peace of mind.

Final Thoughts

For detector-enthusiasts who want a capable, versatile machine that bridges ease of use and serious performance, the Minelab VANQUISH 560 delivers. It brings full waterproofing, large coil coverage, advanced discrimination and target ID, wireless audio, and a modern build into a compact, user-friendly package. Whether you’re swinging in a city park, pounding the beach at dawn, or exploring a creek bank after rain — this machine is ready.
Always ask for deals/promotions not advertised on our website. Or, create your own metal detector bundle and get our deal.

Ready to dig deeper and uncover more? The VANQUISH 560 stands ready to go with you.
